TFPG Posts Grid & Filter

A WordPress plugin that registers two companion Gutenberg blocks and seeds everything needed to try them:

• Posts Grid (tfpg/posts-grid): a dynamic, server-rendered grid of posts (featured image, title, excerpt) with configurable columns (2, 3 or 4) and posts per page. Its pagination is an inner block, tfpg/posts-pagination.
• Posts Filter (tfpg/posts-filter): category and tag filters with multiple selection. Filters are ORed within a group and ANDed across groups, and each option shows how many posts it would match.

The two blocks are never nested. You can put them anywhere on the same page, in any number, and they stay in sync.

---

Contents

1. Quick start
2. What gets created on activation
3. Using the blocks
4. Architecture and decisions
5. Trade-offs and known limitations
6. Development
7. Testing
8. Project structure

---

Quick start

Requirements: WordPress 6.8+ and PHP 7.4+. Tested on WordPress 6.8.10 and 7.1.2, with Twenty Twenty-Five (a block theme) and Twenty Twenty-One (a classic theme).

1. In wp-admin, go to Plugins → Add New Plugin → Upload Plugin, upload tfpg-posts-grid-filter.zip, and click Activate. You can also copy the tfpg-posts-grid-filter folder into wp-content/plugins/ and activate it there.
2. A notice confirms the demo content and links to the Posts Grid Demo page. The plugin row on the Plugins screen also gets a Demo page link.
3. That's it. There's no build step and no manual content. The compiled assets ship in build/.

With WP-CLI:

wp plugin activate tfpg-posts-grid-filter
wp tfpg seed      # create any missing demo content (safe to repeat)
wp tfpg reset     # delete the demo content and seed it again from scratch
wp tfpg cleanup   # delete the demo content

What gets created on activation

Everything uses the unique prefix tfpg (short for Tomer's Filterable Posts Grid):

What	Name
Plugin slug / text domain	tfpg-posts-grid-filter
Post type	tfpg_post ("Grid Posts" in the admin menu)
Taxonomies	tfpg_category (hierarchical), tfpg_tag (flat)
Blocks	tfpg/posts-grid, tfpg/posts-pagination, tfpg/posts-filter
Store namespace, query args, options	tfpg, tfpg_categories / tfpg_tags / tfpg_page, tfpg_demo_content

Demo content:

• 5 categories (Travel, Food & Drink, Technology, Design, Wellness) and 8 tags (Beginner, Advanced, How-to, Opinion, Quick read, In-depth, Budget, Remote work).
• 12 posts. Each has a featured image, a hand-written excerpt, and at least one category and one tag. Most posts have two categories and two or three tags, so combinations narrow down step by step instead of dropping straight to zero. For example, Travel gives 4 posts, + Food & Drink gives 6 (OR), and + Budget gives 3 (AND).
• 12 featured images. They're generated artwork bundled in assets/demo-images/, so no network access is needed. They go through the normal media pipeline, so intermediate sizes and srcset work.
• A "Posts Grid Demo" page. The filter sits in the left column and the grid (with its pagination) in the right one. They're siblings, not parent and child.

Seeding is idempotent and self-healing. Every seeded object carries a stable _tfpg_demo_key meta value, and terms are matched by slug. Re-activating the plugin never duplicates anything and recreates only what's missing (for example, a deleted demo post or page). Deactivating keeps the content. Deleting the plugin (uninstall.php) removes the demo posts, images (including their files), terms, page and options. Grid Posts that an editor created are kept.

Using the blocks

Posts Grid

• Inspector → Layout → Columns: 2, 3 or 4. On narrow containers the grid collapses to 2 columns and then 1. It uses CSS container queries, so it reacts to the column it sits in, not to the viewport.
• Inspector → Query → Posts per page: 1 to 50.

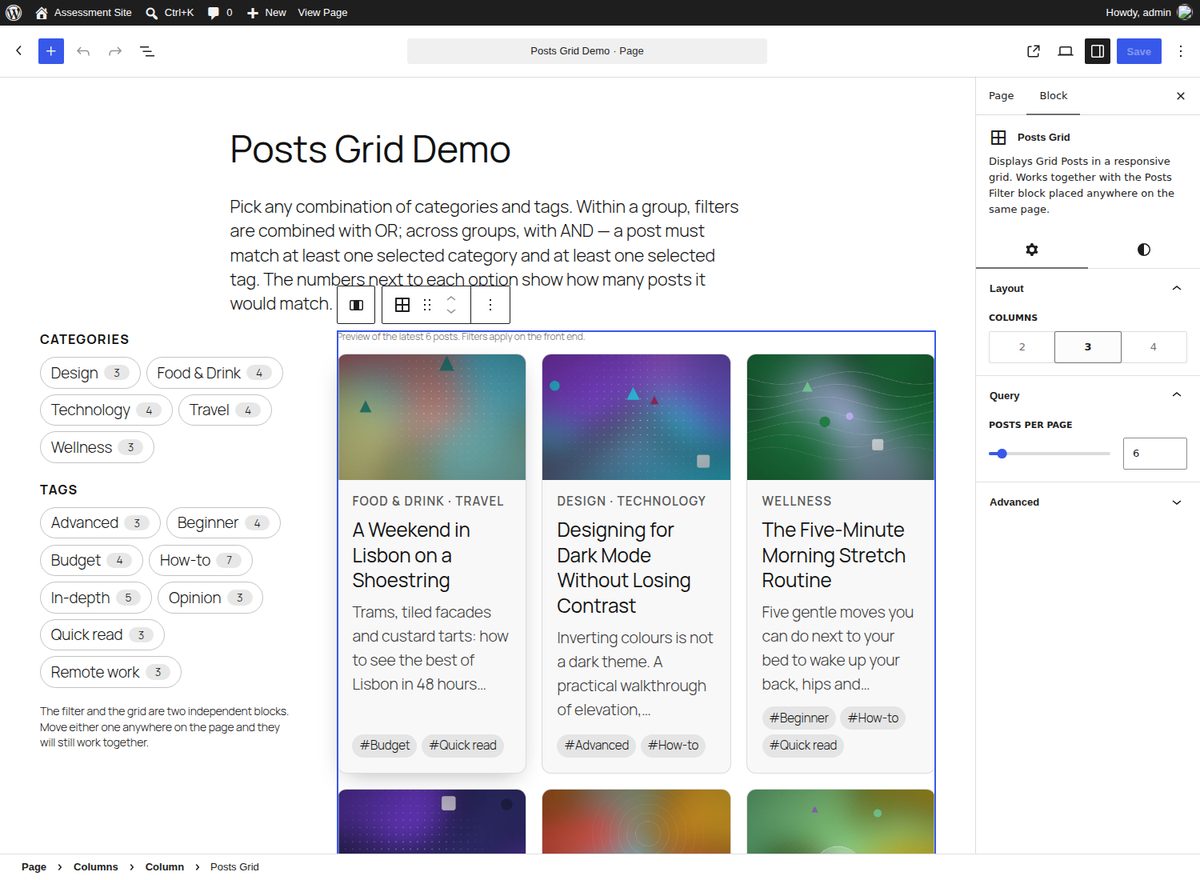

• The editor shows a live React preview of the latest posts, built from the REST API through @wordpress/core-data. A tip appears if no Posts Filter block is on the page yet.
• Supports alignment (wide/full), colors, spacing and font size.

Posts Grid Pagination (inner block)

• Added automatically by the grid's template, and allowed only inside a grid ("parent").
• It's hidden from the inserter, so a grid can't end up with two. If an editor removes it, an Add pagination button brings it back.
• Settings: show page numbers (or "Page X of Y"), and custom Previous/Next labels. Justification comes from the block's layout support.

Posts Filter

• Toggle the category filter and the tag filter, optionally relabel them, and show or hide post counts.
• The editor shows a warning if the page has no Posts Grid.

Architecture and decisions

1. Dynamic, server-rendered blocks

All three blocks are dynamic (render.php). The markup is always current, crawlable, and correct on first paint. Just as important, PHP is the only place card markup exists. The initial render, the updates after filtering or paging, and the no-JS fallback all come from the same template. The grid saves only its inner blocks (<InnerBlocks.Content />), and the other two save null, so changing markup never triggers block validation errors.

2. Inter-block communication: the Interactivity API, with the URL as the source of truth

This was the main design question. The approach, in layers:

1. The URL is the canonical state, for example ?tfpg_categories=travel,food-drink&tfpg_tags=budget&tfpg_page=2. TFPG\Query is the only code that reads it, and every block asks it for "the current query". That's why the blocks agree without knowing about each other, and why filtered views can be shared, bookmarked, and moved through with back/forward.
2. A shared Interactivity API store (tfpg) holds the client-side state (state.filters, state.isLoading). Stores with the same namespace are shared page-wide, which is the Interactivity API's built-in answer to "two independent blocks need the same state". The server seeds the store with wp_interactivity_state(), and derived values (isTermSelected, hasActiveFilters) are defined both as PHP closures (so directives render correctly on the server) and as JS getters.
3. The Interactivity Router applies the change. Toggling a filter updates state.filters, builds the new URL, and calls actions.navigate(). The router fetches that URL and swaps only the elements marked data-wp-router-region: every Posts Grid, and every Posts Filter (so its counts refresh). This is the same mechanism core uses for the Query Loop's "enhanced pagination".
4. Back/forward: the router restores the regions' HTML, and a popstate callback re-reads state.filters from the URL.

Why this approach and not the alternatives:

Option	Why not
Block context / nesting	Context flows only from parent to child, and the brief requires the blocks to be independent.
Custom DOM events or a global JS object	It works, but reinvents state management with no server-side rendering or hydration story, and you still need a way to redraw the grid.
A React front end calling the REST API	Ships React to visitors, duplicates the card markup in JS and PHP, and the first paint is a spinner rather than content.
REST endpoint returning HTML fragments	Swapping innerHTML inside hydrated regions breaks the Interactivity API. You'd also need to hand-roll URL and history syncing, race handling and script loading.
Interactivity API + Router (chosen)	WordPress-native (6.5+), about 2.5 KB of plugin JS (1.2 KB gzipped), one template, SEO-friendly, shareable URLs and back/forward for free.

There's also a small but useful detail. All three block.json files point viewScriptModule at the same file, build/store/index.js (source in src/store/, organized by concern: core.js, filter.js, pagination.js). Browsers evaluate an ES module once per URL, so it loads once whichever blocks are present. Because the whole store is in that one module, a block that only appears after a client-side navigation is interactive immediately. An example is the Pagination block, which reappears when filters are cleared. That holds even on WordPress versions whose router doesn't load new script modules during navigation.

3. Filtering logic

TFPG\Query::build_query_args() builds one tax_query:

'tax_query' => array(
    'relation' => 'AND',                       // AND across filter types
    array( 'taxonomy' => 'tfpg_category', 'field' => 'slug', 'terms' => [ ... ], 'operator' => 'IN' ), // OR within
    array( 'taxonomy' => 'tfpg_tag',      'field' => 'slug', 'terms' => [ ... ], 'operator' => 'IN' ),
)

A group with no selection doesn't constrain the results. Slugs from the URL are sanitized, capped at 50 per group, and validated against existing terms. The args pass through the tfpg_query_args filter so they can be extended.

Counts use disjunctive faceting. A category's count respects the selected tags but ignores the other selected categories, because those are ORed. So the numbers always show what clicking would do, and they make the OR/AND rule visible. A zero-match option is dimmed but stays clickable.

4. Pagination as an inner block

WordPress renders inner blocks before their parent's render callback, so the pagination can't simply read a query that the grid runs later. Instead:

• The grid provides tfpg/postsPerPage through block context (providesContext / usesContext).
• Both blocks call Query::get_grid_query(), which is memoized per request, so the query runs once.
• Pagination links are real URLs that keep the active filters, and they fall back to normal navigation without JS. With JS, clicks load in place, pages prefetch on hover or focus, and focus moves to the refreshed grid for keyboard and screen reader users.
• A custom tfpg_page query arg is used instead of paged/page, so it never clashes with the host page's own pagination. Changing a filter resets to page 1, and an out-of-range page falls back to page 1.

5. Progressive enhancement and accessibility

• The filter is a real <form method="get"> with native checkboxes inside <fieldset>/<legend>. Without JS, an Apply filters button appears. The form carries over unrelated query args, such as ?page_id=12 on sites without pretty permalinks.
• The chips are the native checkboxes, visually restyled but still announced and keyboard-operable. The selected state is shown with a ✓ as well as color.
• The grid has a role="status" live region ("3 posts found."), plus aria-busy while loading and aria-current on the current page. Motion respects prefers-reduced-motion.

6. Content model and seeding

• A prefixed post type and taxonomies keep the demo isolated from a site's real blog posts, and make uninstalling complete and safe.
• Seeding runs in the activation hook. init has already fired at that point, so the post type is registered directly first. Seeding is multisite-aware: network activation seeds each site.

7. Styling

Styles are theme-agnostic. Colors come from currentColor / color-mix() and theme presets (--wp--preset--color--contrast/base, --wp--preset--font-size--small), with sensible fallbacks, and inner sizes use em so the block's font-size setting scales everything. A few defensive rules handle classic themes: raised specificity for checkboxes, [hidden] enforcement, and stripping inline image styles that some themes inject into post thumbnails.

Trade-offs and known limitations

• One filter state per page. Every grid on a page follows every filter on that page, which is the intended "place them anywhere" behavior. Grids also share the tfpg_page parameter, so two paginated grids on one page page together. The natural extension is a queryId-style attribute that namespaces the query args, as core's Query Loop does.
• The router fetches the whole page. Each interaction downloads the full page HTML rather than a small JSON payload. In exchange there's a single template and less JS. Prefetching on hover and HTTP/page caching (the URLs are cacheable GETs) offset the cost. On a very heavy page, a REST endpoint with client-side templates (data-wp-each) would be the next step.
• Facet counts run one ID-only query over all matching posts per filter group, cached in the object cache and invalidated on post and term changes. That's fine for hundreds or thousands of posts. At much larger scale it would need a dedicated index table.
• The grid only queries tfpg_post, which keeps the demo isolated. The tfpg_query_args filter can retarget it, but the taxonomy mapping lives in Content_Model::filter_taxonomies().
• Editor previews are unfiltered. The editor shows the latest posts, and the filter preview is static. Filtering happens on the front end.
• Hierarchical categories: selecting a parent includes its children (the WordPress default), but counts don't roll children up into parents. The demo terms are flat.
• Pagination uniqueness is enforced in the UI (it's hidden from the inserter), but "Duplicate" can still create a second one inside the same grid.
• Requires WordPress 6.8+ because of withSyncEvent and block registration from the metadata collection manifest.
• Multisite: sites created after network activation aren't seeded automatically. Run wp tfpg seed --url=<site>.
• The shared store module is printed once per block type as `
