LocaSentinel

Geo-Security, Impossible Travel 2FA, Comment Spam Defense & Reverse Proxy Firewall for IP2Location
Built for the IP2Location Programming Contest 2026 using the IP2Location.io Free API by Mardhiah Air Network.

Disclaimer

• The project is a demo/contest implementation.
• It is not a replacement for a WAF, DDoS protection, or full MFA.
• Geolocation depends on IP2Location data/API availability.
• CAPTCHA clearance is tied to the client IP.
• Changing IP addresses can require a new CAPTCHA challenge.
• Trusted proxy/CDN configuration affects IP detection.
• Fail-open and fail-safe modes have different security implications.
• Impossible Travel is an additional authentication signal.

🏆 IP2Location Programming Contest 2026

LocaSentinel was created specifically for the IP2Location Programming Contest 2026. It is designed to leverage the IP2Location.io Free API (supporting free tier keys with 50,000 monthly lookups), featuring:

• High-Performance In-Memory & Transient Caching: Maximizes free tier API efficiency by caching IP geolocation lookups in memory (Redis auto-driver) and WordPress transients with configurable TTL (default 24 hours), reducing unnecessary API roundtrips by up to 99%.
• Zero-Failure Fallback: In the event of API timeouts or rate limits, LocaSentinel gracefully fails open or safe according to your configured policy, ensuring zero disruption to legitimate visitors.

Key Capabilities

1. Geo Firewall & Access Control

• Country Filtering: Blocklist or Allowlist modes with quick regional presets (North America, South America, European Union, ASEAN, Middle East & GCC, Asia-Pacific, Common Spam Origins).
• Granular Rule Sets: Filter traffic by state/region name, city, postal/ZIP code, and ASN / ISP organization name.
• Proxy & VPN Detection: Identify and block anonymous proxies, VPNs, TOR nodes, and hosting data center ranges (is_proxy == true).
• Extended Crawler & Bot Allowlist:
  • Search Engines: Googlebot, Bingbot, Yahoo! Slurp, Baiduspider, YandexBot, DuckDuckBot, Applebot, Naver Yeti, Sogou, Seznam.
  • Anti-Spoofing Verification (rDNS): Performs reverse DNS lookups on search bot requests to verify genuine crawler identity.
  • Social Media Previewers: Facebook / Meta, Twitter / X, LinkedIn, Pinterest, WhatsApp, Telegram, Discord, Slack.
  • SEO & Monitoring: AhrefsBot, SemrushBot, Moz, UptimeRobot, Pingdom, Screaming Frog.
  • AI & LLM Crawlers: GPTBot, ChatGPT-User, ClaudeBot, Anthropic-AI, PerplexityBot, Google-Extended, Bytespider, CCBot.
  • Custom User-Agent Patterns: Whitelist proprietary crawlers, monitoring tools, or webhook scrapers with custom substring or regular expression rules.
• IP Exceptions: IPv4 and IPv6 allowlist and blocklist supporting single IPs, wildcards (*), and CIDR subnet notation (192.168.1.0/24).

2. Impossible Travel Velocity Detection & 2FA

• Velocity Calculation: Computes geographical displacement and travel speed between consecutive logins using the Haversine great-circle formula: $$\Delta \sigma = 2 \arcsin \sqrt{\sin^2\left(\frac{\Delta \phi}{2}\right) + \cos \phi_1 \cos \phi_2 \sin^2\left(\frac{\Delta \lambda}{2}\right)}$$ $$\text{Velocity} = \frac{R \cdot \Delta \sigma}{\Delta t}$$
• Email OTP Verification: Suspicious logins exceeding the configured speed threshold (default 800 km/h) are challenged with a 6-digit one-time password valid for 10 minutes.
• Dynamic Mobile Carrier Tolerance: Cellular networks dynamically rotate IPs through regional gateways. LocaSentinel tracks device signatures and carrier ASN data to prevent false-positive lockouts on domestic mobile traffic.
• SMTP Safety Safeguard: Detects active SMTP plugins (WP Mail SMTP, Post SMTP, FluentSMTP, Easy WP SMTP) and automatically mutes OTP challenges when SMTP is unconfigured to prevent admin lockouts.
• Security Webhooks with {{variable}} Templating: Dispatches instant alerts to Discord, Slack, Telegram, or custom endpoints with full placeholder interpolation ({{ip}}, {{country_name}}, {{user_login}}, {{speed_kmh}}, {{timestamp}}) in both custom JSON payloads and dynamic URL parameters.

3. Endpoint Hardening & Discussion Protection

• Multi-Layer Comment & Geo Defense:
  • Submission Rejection: Intercepts spam submissions at the WordPress hook level (preprocess_comment) before database insertion, rejecting comments originating from blocked countries or anonymous proxies.
  • Visitor Comment Hiding: Dynamically hides the comment section, discussion form, and comment count for visitors browsing from restricted territories or proxies.
  • Historical Comment Filter: Automatically filters past comments previously submitted by blocked IP addresses or countries from being displayed on posts.
• XML-RPC Protection: Blocks unauthorized XML-RPC requests and pingbacks commonly exploited in brute-force amplification attacks.
• Login Protection: Restricts access to wp-login.php to authorized geographical territories.
• REST API Protection with Admin Bypass: Intercepts unauthenticated REST routes for restricted territories while granting priority-99 bypass for authenticated administrators and editors.

4. Anti-Spam Whole-Website Rate Limiting & CAPTCHA Challenge

• Persistent 24-Hour Enforcement: Monitors request frequency per URL path. When an IP spams the same link excessively (e.g. >10 requests in 60 seconds), the IP is locked into a challenge state in the database for 24 hours. Waiting or refreshing does not bypass the challenge.
• Whole-Website Clearance: Legitimate visitors who successfully solve the challenge receive 24-hour clearance across the entire website.
• Strict Geo-Restriction Enforcement: Even after solving the CAPTCHA, if a visitor's origin IP resides in a restricted country or blacklisted network, the Geo Firewall strictly maintains access denial (HTTP 403).
• Non-Restricted Geo Spam Defense: Administrators can toggle whether allowed/whitelisted country traffic is subjected to the anti-spam CAPTCHA challenge when spam thresholds are exceeded.
• Supported Providers: Cloudflare Turnstile, hCaptcha, Google reCAPTCHA v2 (Checkbox), and Google reCAPTCHA v3 (Invisible).

5. Cache & CDN Interoperability

• Redis In-Memory Auto-Driver: Automatically detects and connects to Redis for in-memory geolocation caching, fast log debouncing, and rate limiting when Redis is available.
• Cache Vary Headers: Sends DONOTCACHEPAGE and X-LiteSpeed-Vary headers on blocked responses so page caching plugins never store or serve blocked content to legitimate users.
• Supported Cache Engines: Redis, LiteSpeed Cache, WP Rocket, W3 Total Cache, WP Super Cache, WP Fastest Cache, SG Optimizer.
• Reverse Proxy IP Resolution: Accurate client IP extraction across Cloudflare (CF-Connecting-IP), Sucuri (X-Sucuri-ClientIP), Fastly, Akamai, AWS CloudFront, and Nginx reverse proxies.

6. Security Audit Logging & Analytics

• Anti-Spam Log Debouncing: Aggregates repeated identical blocked hits within a 5-minute window into a single row with an incremental hit counter (hit_count), preventing database bloat from automated spam or bot probes.
• Noise Filtering: Automatically ignores favicons, app icons, web manifests, crawler definitions (robots.txt, sitemaps), and common static assets from the audit log table.
• Granular Event Telemetry: Indexed {wpdb_prefix}_ip2location_logs recording timestamp, client IP, country, city, ASN, HTTP Method (GET, POST, PUT, DELETE), Request URL, target endpoint, action verdict, username, device type, browser, OS, and full user-agent.
• Export & Maintenance: Instant CSV export and automated daily retention cleanup cron.

Technical Architecture

ip2location-sentinel/
├── ip2location-sentinel.php    # Plugin bootstrap, constants & PSR-4 autoloader
├── readme.txt                  # WordPress plugin repository documentation
├── README.md                   # Repository & developer overview
├── assets/
│   └── flags/                  # 271 local SVG country flags (Lipis Flag Icons, MIT)
├── src/                        # PSR-4 Namespace (IP2Location\Sentinel\)
│   ├── Activator.php           # Activation routines, table migration & options setup
│   ├── Admin.php               # Native admin tabs, AJAX live filtering & autosave engine
│   ├── ApiClient.php           # IP2Location.io Free API client, transient cache & error handling
│   ├── CacheCompat.php         # Cache headers (LiteSpeed Vary, WP Rocket, DONOTCACHEPAGE)
│   ├── Captcha.php             # Cloudflare Turnstile, hCaptcha & Google reCAPTCHA engine
│   ├── Countries.php           # ISO-3166-1 country data, local SVG flag helpers & regional presets
│   ├── Deactivator.php         # Deactivation hooks & cron cleanup
│   ├── Firewall.php            # Request lifecycle hooks, admin bypass & block dispatch
│   ├── ImpossibleTravel.php    # Haversine velocity engine, mobile tolerance & 2FA OTP
│   ├── IpResolver.php          # Reverse proxy header resolution & localhost fallback
│   ├── Logger.php              # Database audit logger, anti-spam debouncer & CSV exporter
│   ├── RedisDriver.php         # Redis auto-detection & high-performance memory storage
│   ├── RuleEngine.php          # Core rule evaluation engine (countries, ASN, proxies, IPs)
│   ├── SmtpChecker.php         # SMTP mailer plugin detection & email delivery safety
│   ├── UserAgent.php           # Zero-dependency MobileDetect parser (Device, Browser, OS, Bots)
│   └── Webhook.php             # Multi-platform webhook dispatcher (Discord, Slack, Telegram)
├── admin/
│   ├── css/
│   │   └── ip2loc-admin.css    # Responsive native WordPress admin styling
│   ├── js/
│   │   └── ip2loc-admin.js     # Real-time AJAX live filter, Select2 & debounced autosave
│   └── views/
│       ├── audit-logs.php      # Live AJAX audit log viewer with HTTP method badges
│       ├── block-template.php  # Public 403 geo-blocked template
│       ├── captcha-challenge-template.php # Public 429 Anti-Spam CAPTCHA challenge template
│       ├── dashboard.php       # Overview KPI metrics, traffic chart & IP inspector
│       ├── settings-api.php    # Free API configuration & live connection test
│       ├── settings-cache-cdn.php # Cache engine status & header diagnostics
│       ├── settings-impossible-travel.php # Impossible travel, 2FA & webhook settings
│       ├── settings-protection.php # Endpoint hardening, CAPTCHA & block templates
│       └── settings-rules.php  # Geo Firewall rule manager & regional presets

Screenshots

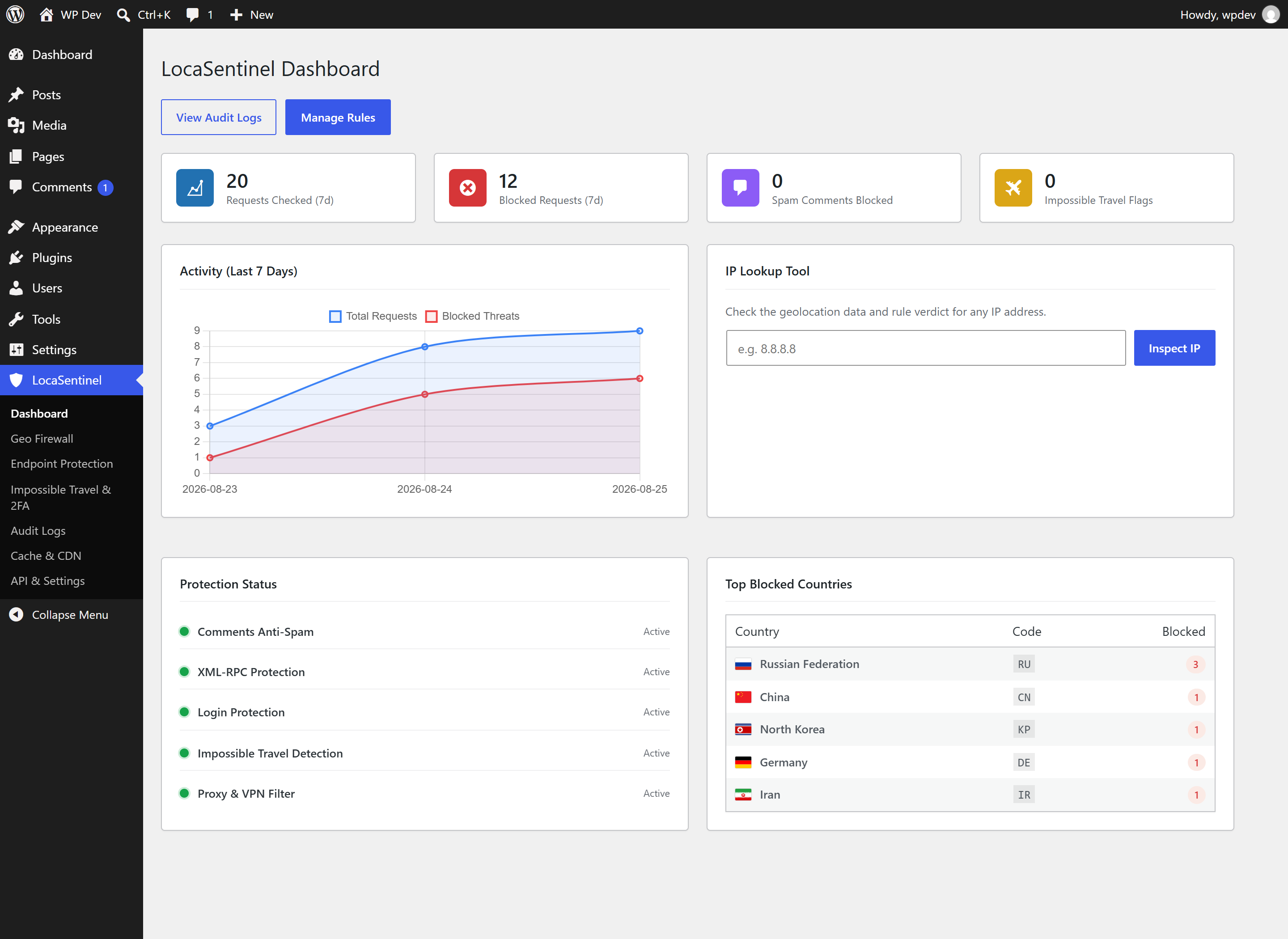

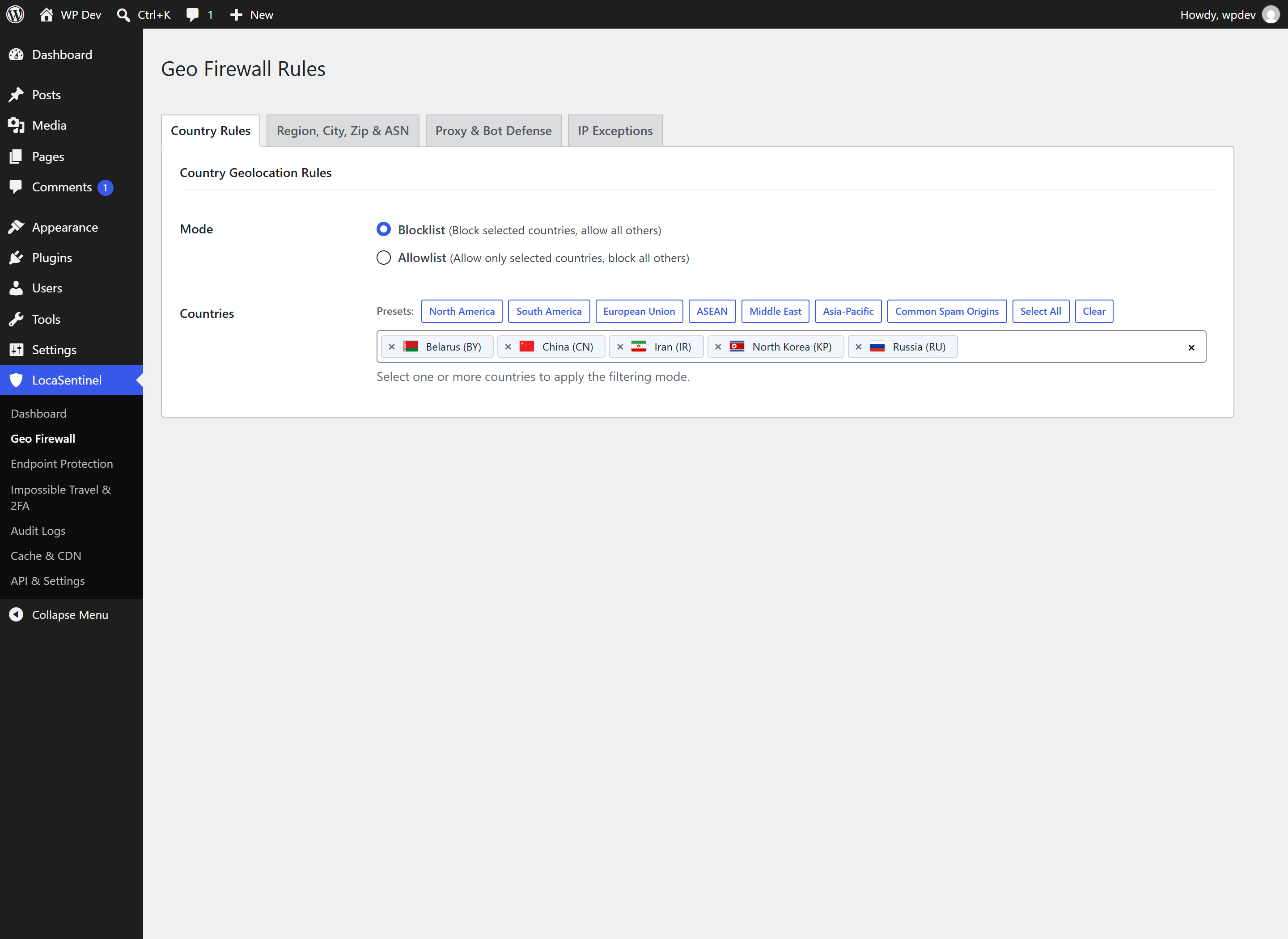

1. Dashboard Overview & Traffic Analytics	2. Geo Firewall Rules & Regional Presets

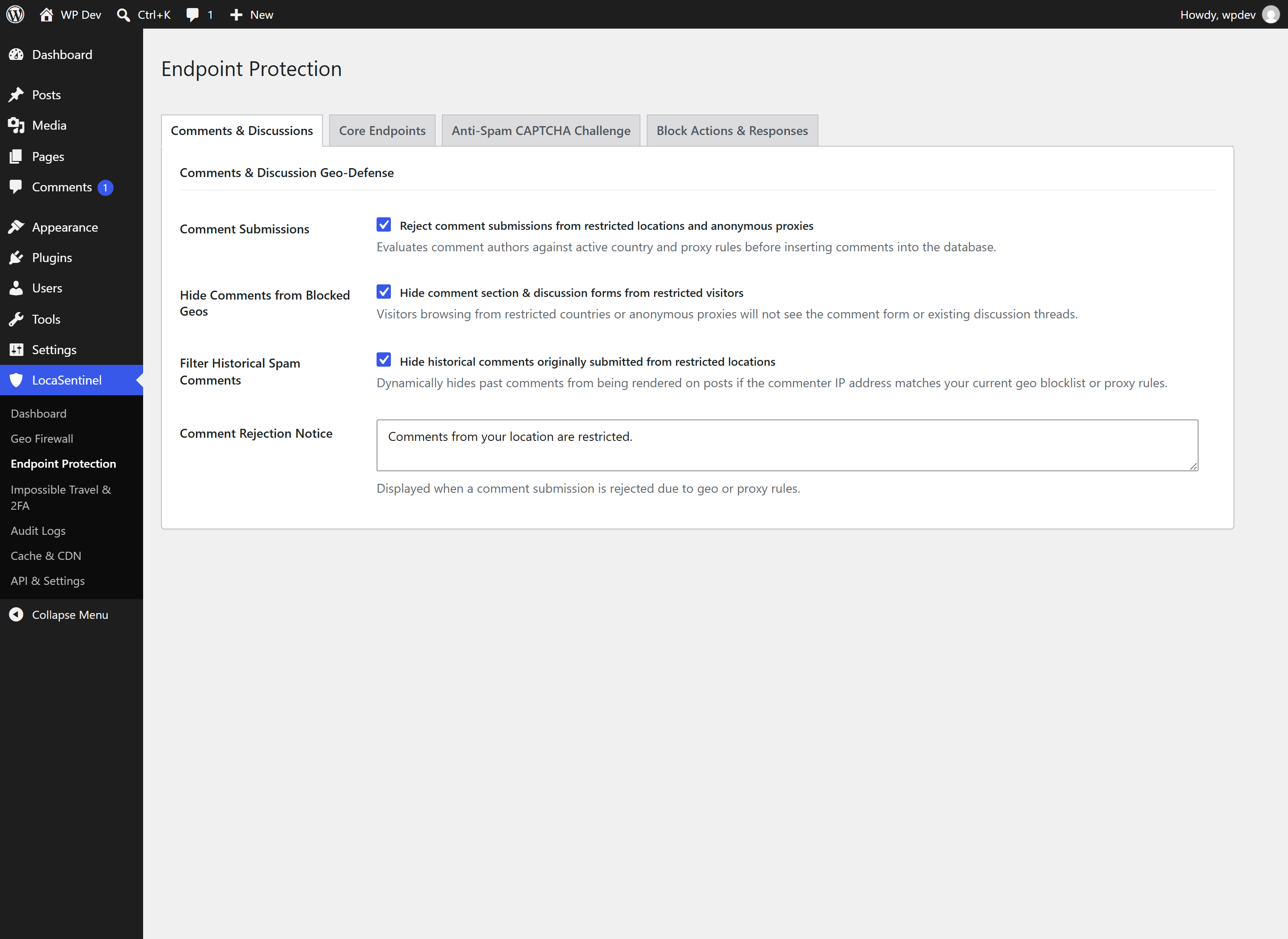

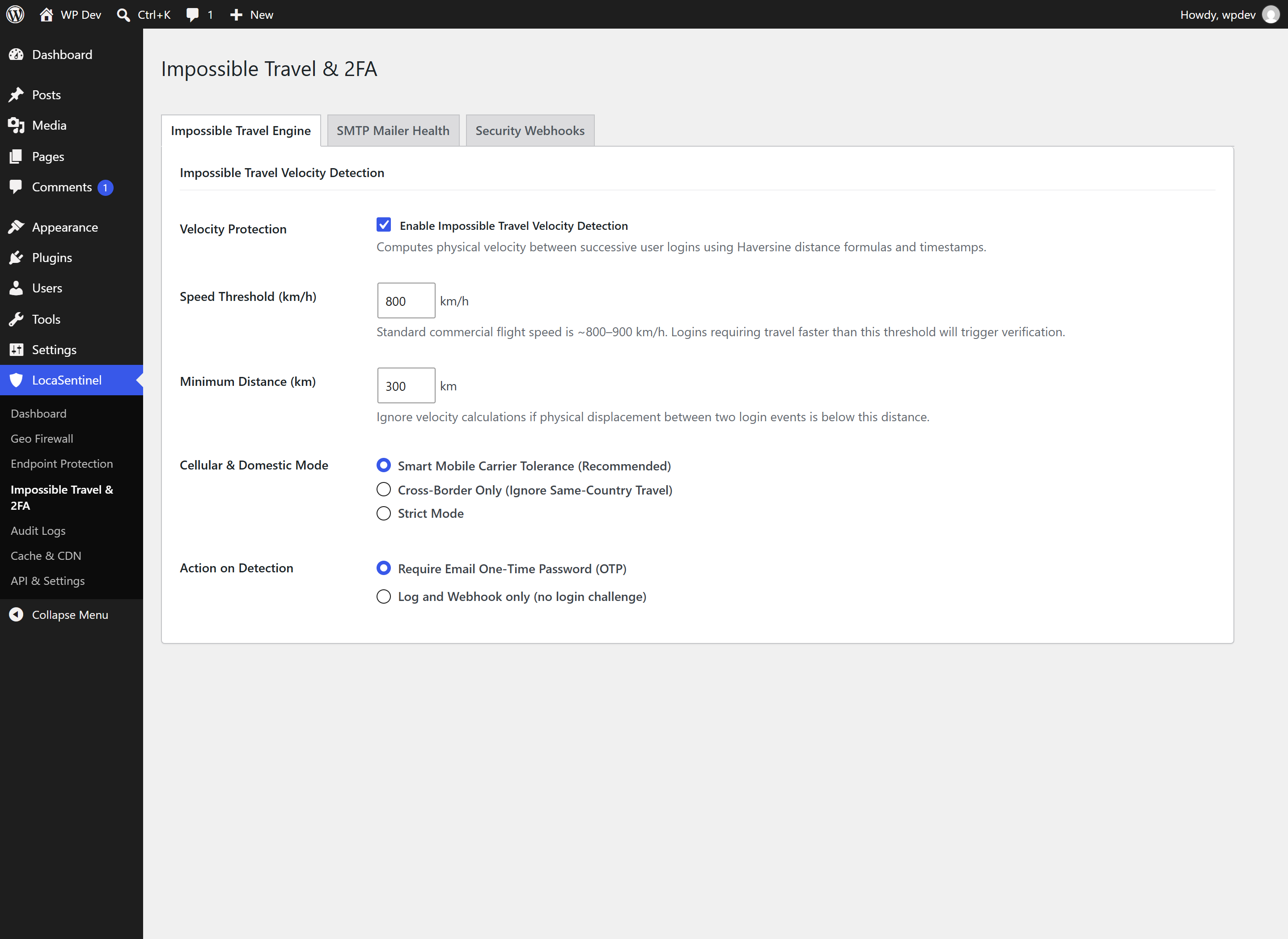

3. Endpoint Protection & Anti-Spam	4. Impossible Travel Velocity & 2FA

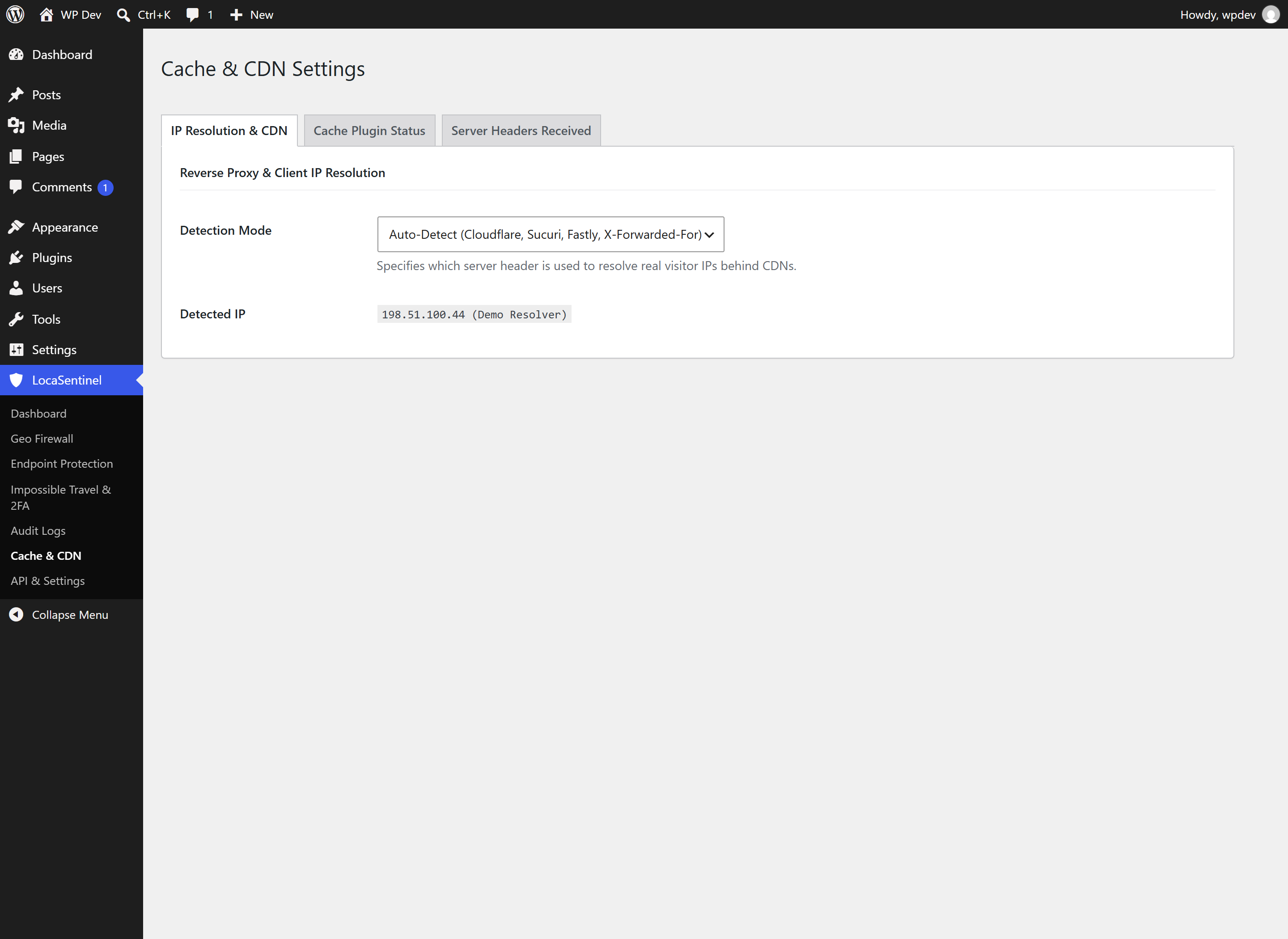

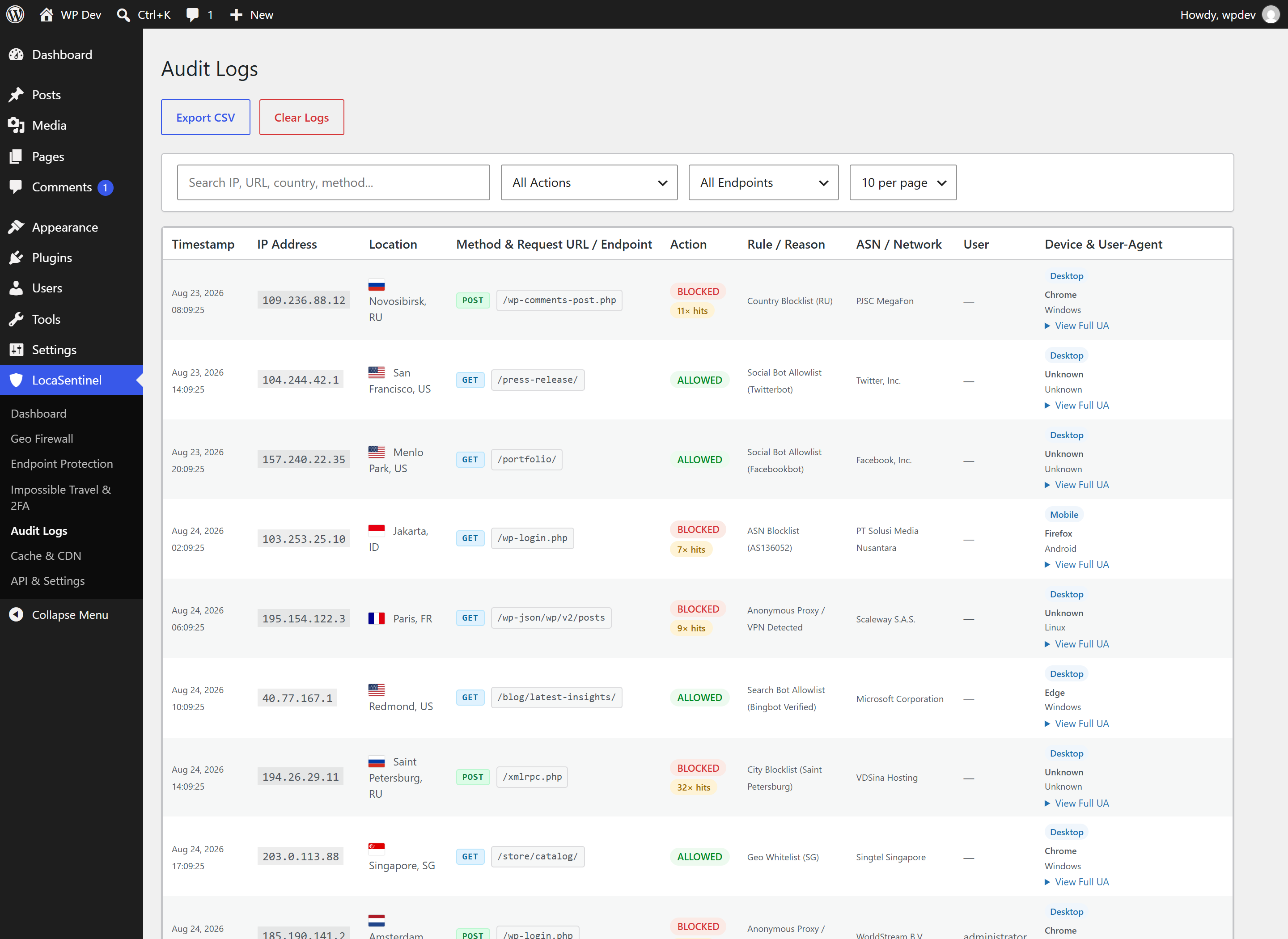

5. Real-Time Security Audit Logs	6. Cache & CDN Diagnostic Inspector

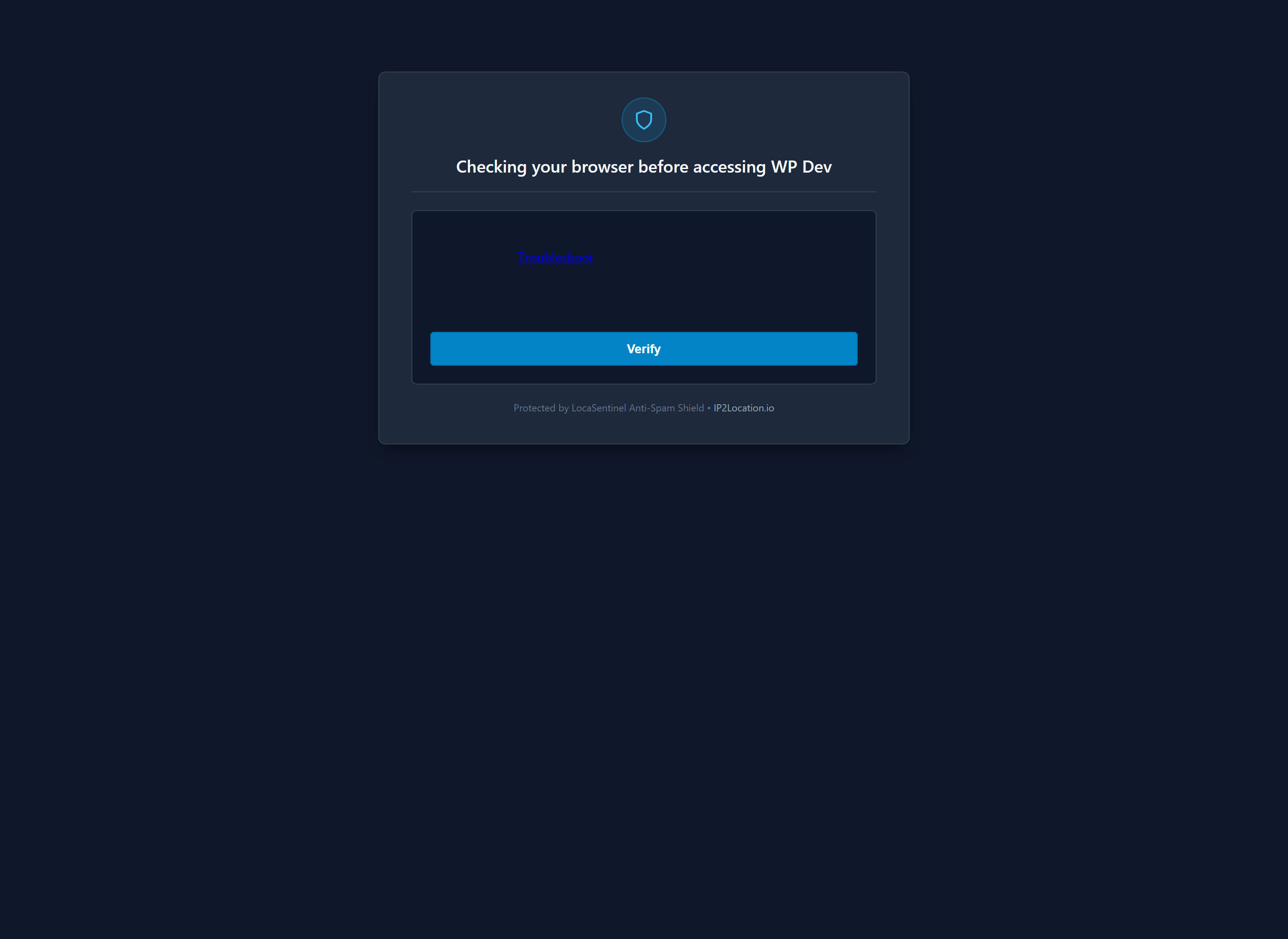

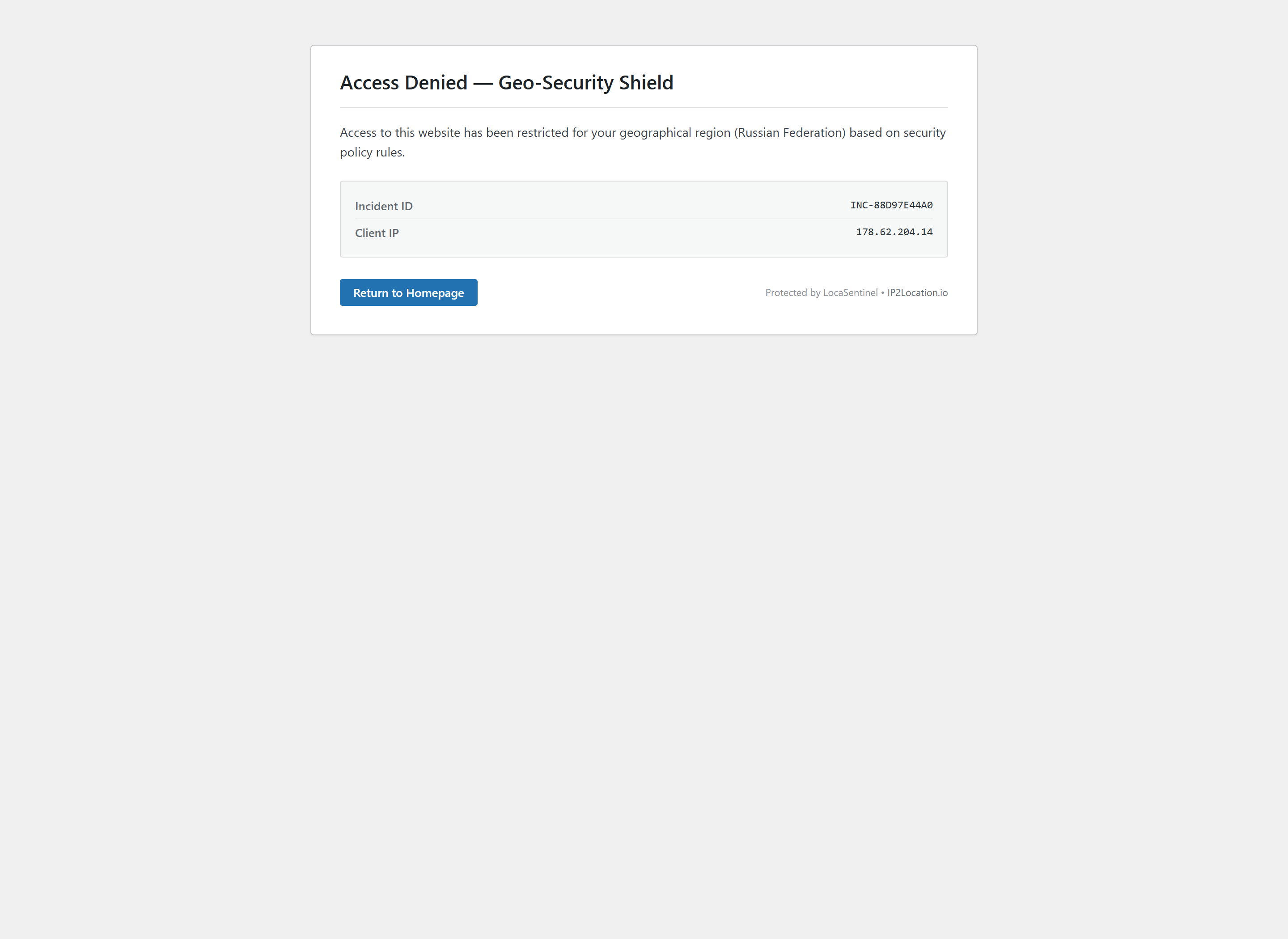

7. Public 403 Forbidden Shield Template	8. Public 429 Anti-Spam CAPTCHA Shield

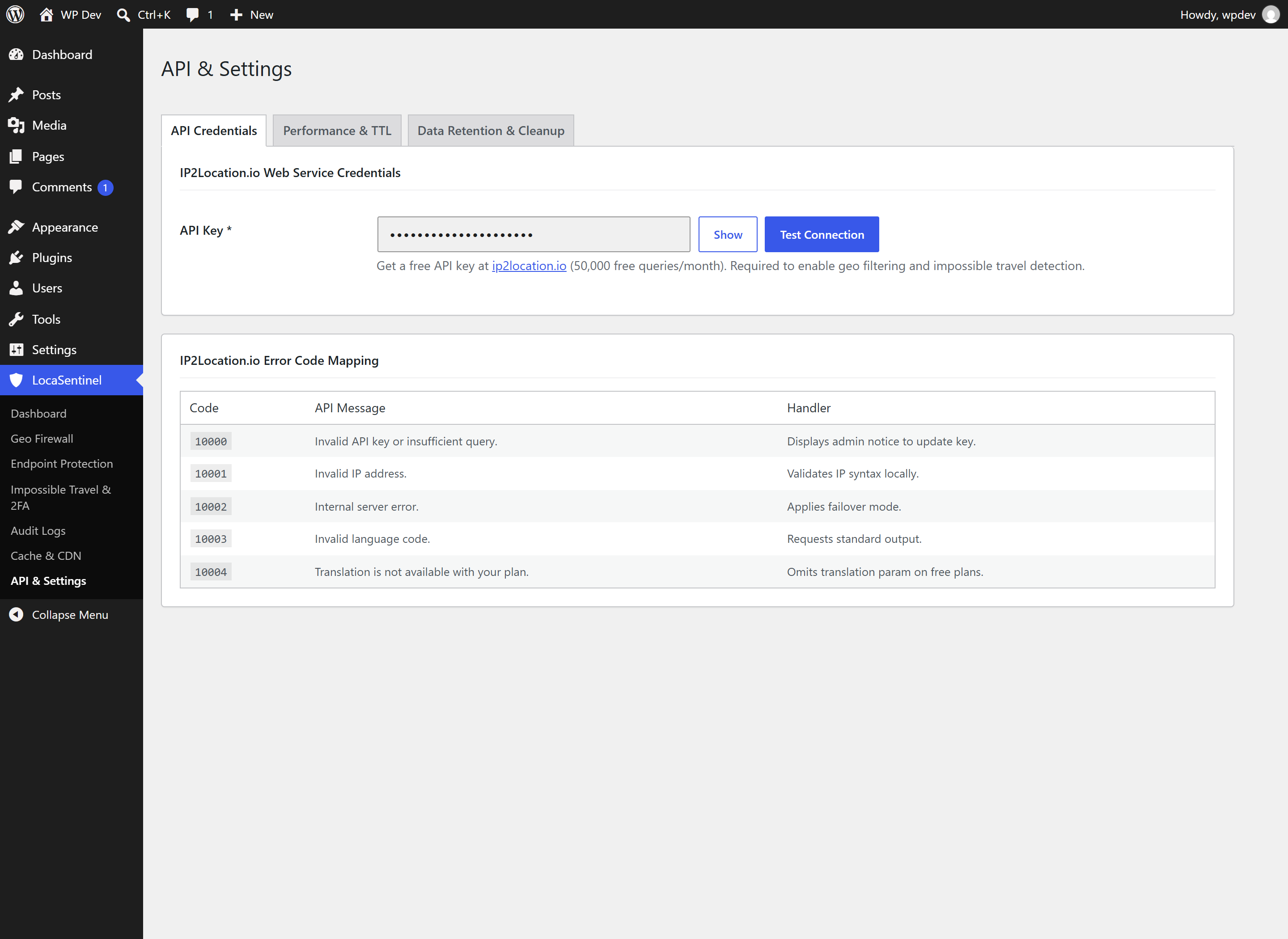

9. API Configuration & Connection Test

Installation & Setup

1. Copy or clone ip2location-sentinel into /wp-content/plugins/.
2. Activate the plugin in WordPress Admin > Plugins.
3. Go to LocaSentinel > API & Settings and enter your free API key from ip2location.io.
4. Click Test Connection to verify API connectivity.
5. Configure your access rules in Geo Firewall and Endpoint Protection.

Credits & Third-Party Assets

• IP Geolocation & Threat Intelligence: Powered by IP2Location.io (IP2Location Programming Contest 2026).
• Country Flag SVG Assets: 271 self-hosted local vector SVG flags sourced from Flag Icons by Lipis (Panayiotis Lipiridis), licensed under the MIT License.

Author & License

• Plugin Name: LocaSentinel
• Contest: IP2Location Programming Contest 2026
• API Version: IP2Location.io Free API Tier (50,000 queries/month)
• Author: Mardhiah Air Network (mardhiahnetwork@gmail.com)
• License: GNU General Public License v2.0 or later (GPLv2+)
