Image Pins

A small WordPress plugin (ACF Pro required) for placing interactive pins on an image and attaching arbitrary ACF field data to each one, output anywhere via a shortcode.

Each "Image" is one base image plus a repeater of pins. Pins always carry a position (top/left, set by clicking on the image), and can additionally carry any fields from a field group you pick per image — so a "map" image can have pins with a place name, while a "car" image can have pins with a part name and description, without touching any code.

This is a portfolio/demo project: the front-end template (template/example.php) is a working example, not a finished widget — it's meant to be copied into a theme and adapted, or fully replaced via a filter.

Screenshots

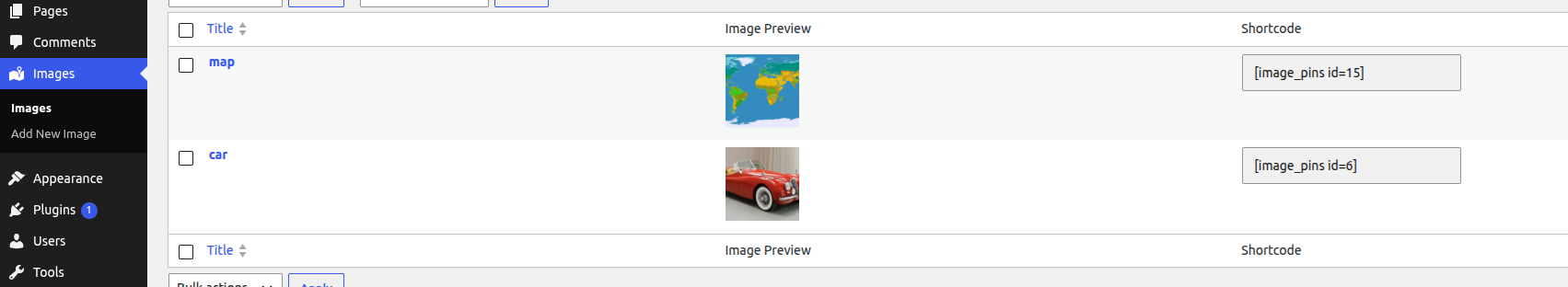

Managing images and their shortcodes

Placing pins with custom fields per image

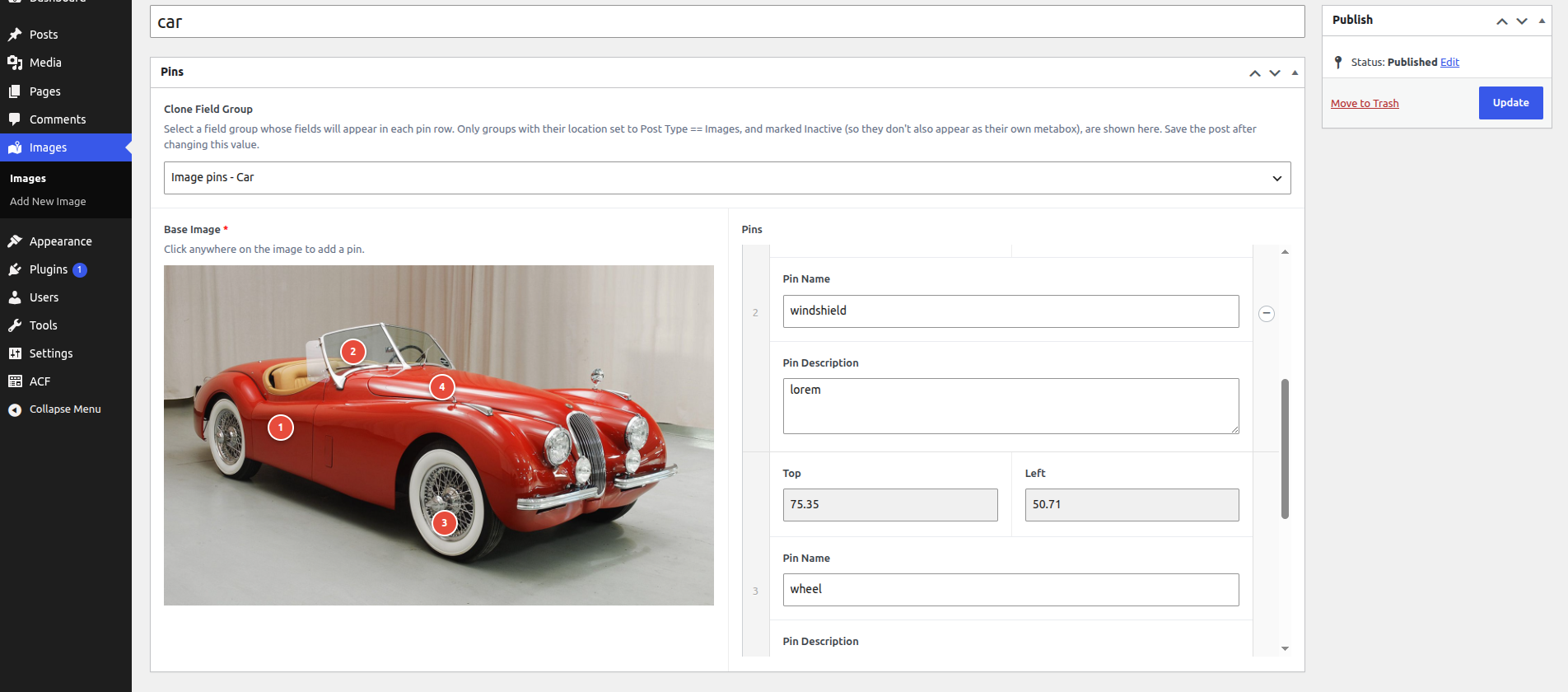

Click anywhere on the image to add a pin; drag a pin to reposition it. Which extra fields show up per pin depends on the ACF field group picked in "Clone Field Group" — here a car with named/described parts:

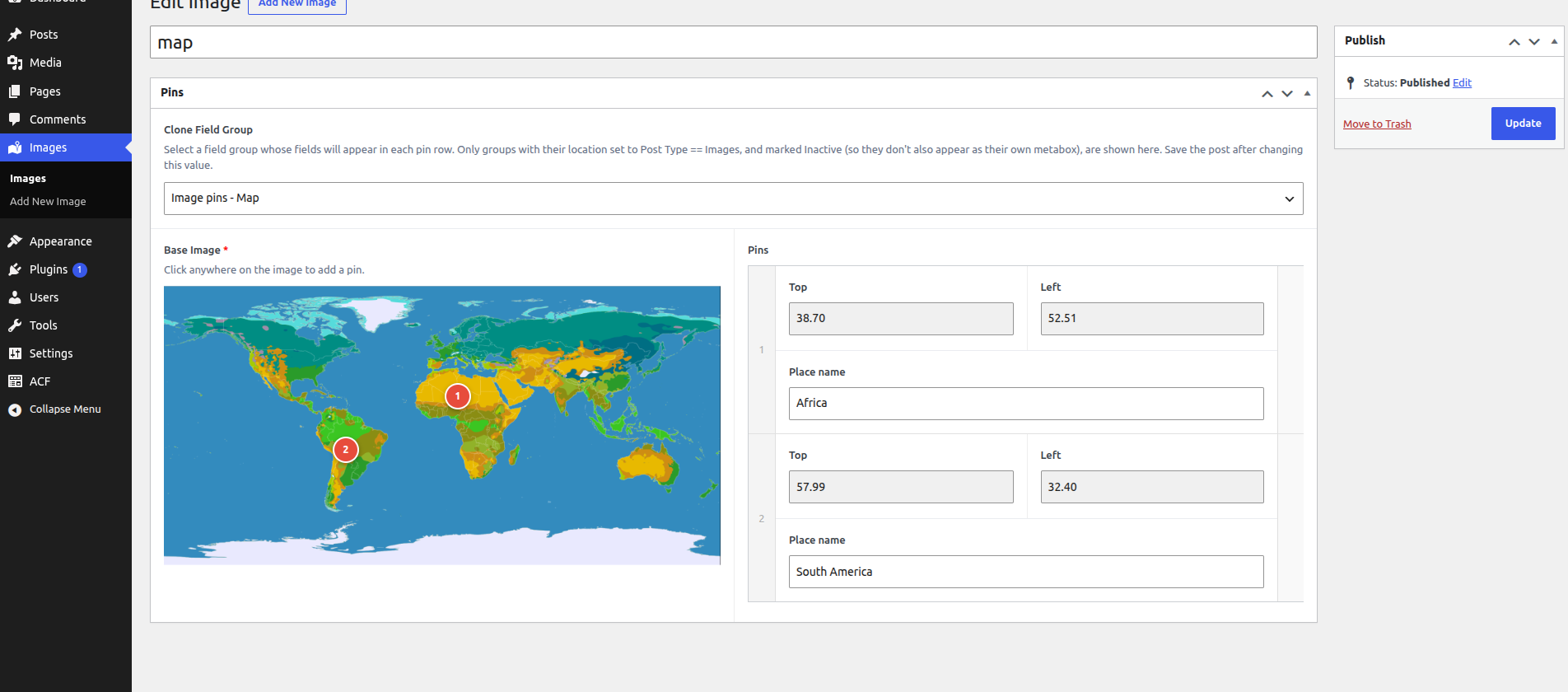

...and a map with place names instead:

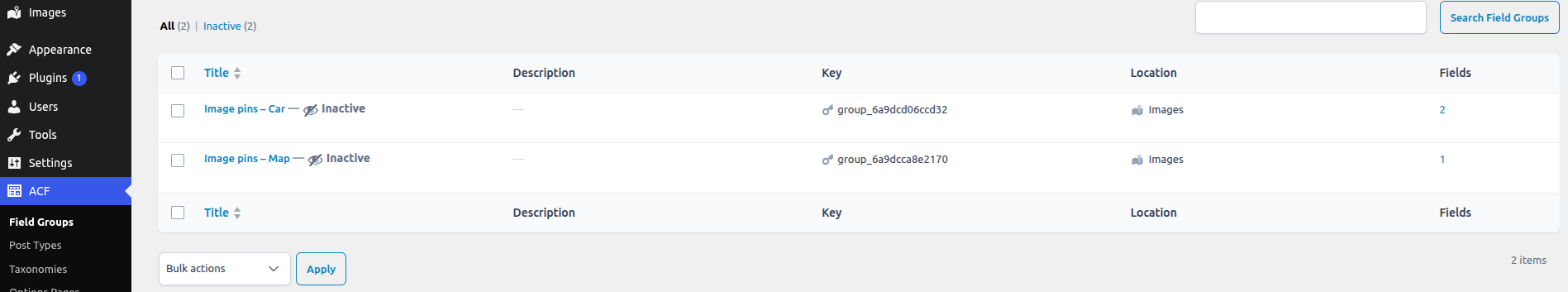

The two field groups being cloned from are regular ACF field groups, with their location set to Post Type == Images and marked Inactive so they don't show up as their own metabox — that combination is what makes them appear in the "Clone Field Group" dropdown, they exist only to be cloned into pin rows:

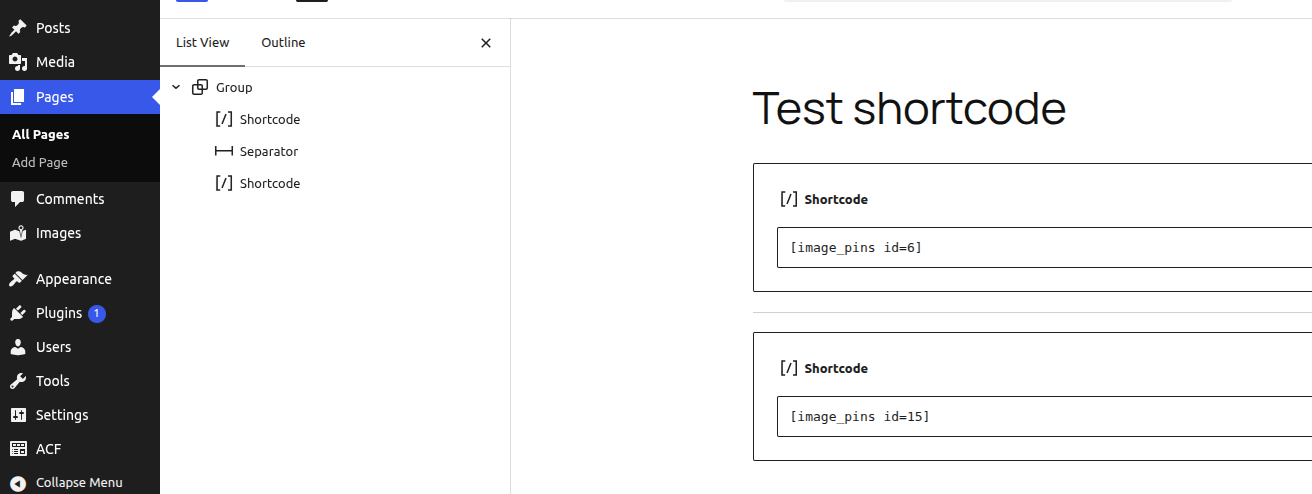

Using the shortcode

Requirements

• WordPress 7.1+
• PHP 8.2+
• Advanced Custom Fields PRO — enforced via the Requires Plugins header, WordPress won't let this plugin activate without it.

Installation

1. Copy (or clone) this folder into wp-content/plugins/image-pins.
2. Activate Image Pins in Plugins — WordPress will refuse to activate it if ACF Pro isn't active first.

Usage

1. Go to Images → Add New.
2. Upload a Base Image and save the post — the image can't be changed after that (the pins are positioned relative to it).
3. Optionally pick a Clone Field Group to add its fields to every pin row on this image. Only field groups with their location set to Post Type == Images and marked Inactive show up as choices here — create one, configure it that way, then select it. Save again after changing this.
4. Click anywhere on the image to add a pin, drag to reposition.
5. Copy the shortcode shown in the Images list table (or build it yourself: [image_pins id="123"], where 123 is the image's post ID) and paste it into any post, page, or widget.

Customizing the front end

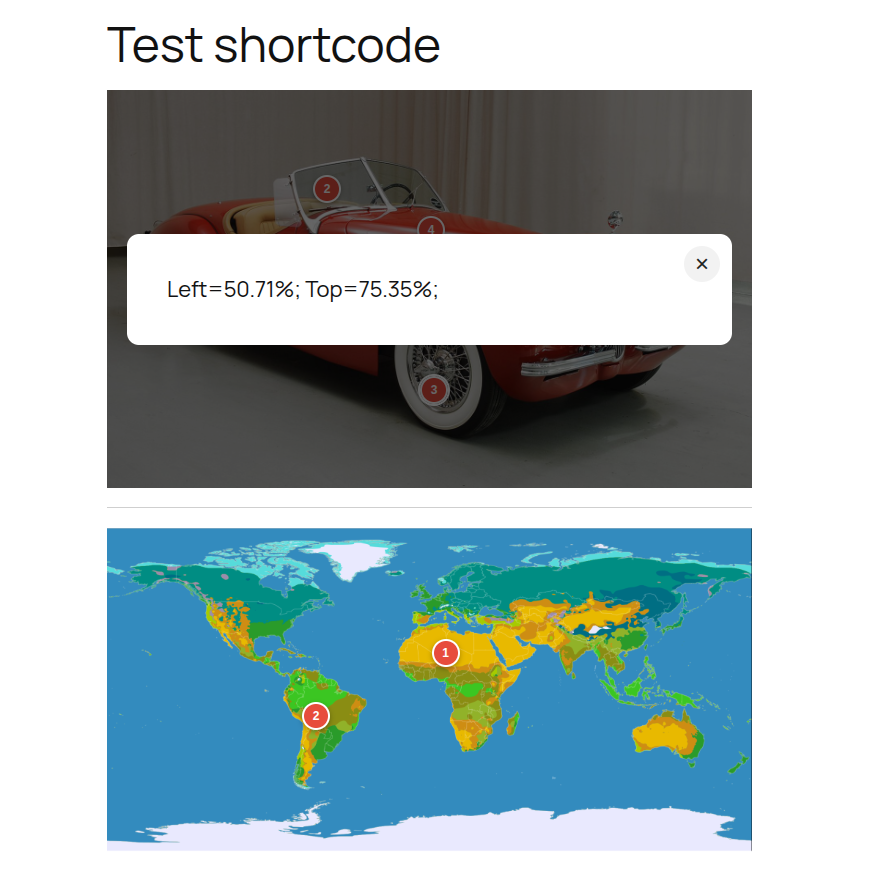

The shipped template (template/example.php) renders the image, positions a numbered marker per pin, and opens a popup showing each pin's top/left on click — enough to see it work, not a finished design.

To point the shortcode at your own template instead, hook the image_pins_template filter from your theme:

add_filter( 'image_pins_template', function ( $template, $post_id, $clone_group ) {
    return get_stylesheet_directory() . '/image-pins/template-' . $clone_group . '.php';
}, 10, 3 );

$clone_group is the ACF field group key selected for that image, so you can key your template off the shape of the data rather than a specific post ID or slug (which don't survive moving between environments).

Inside your template, two variables are available:

• $image_id — the base image's attachment ID.
• $pins — an array of rows; each row always has image_pins_top and image_pins_left (percentages), plus whatever fields the chosen clone group added.

License

GPL-2.0-or-later
